Applications: Flooring: Court house renovation in Schaffhausen, Switzerland

Information in pdf format (727 KB)
Kind of insulation: Floor insulation
Construction: Mion-AG, Neuhausen am Rheinfall / CH, Architect: Rolf Lüscher, Schaffhausen / CH
Contact:Ansprechpartner: Gregor Erbenich, or Guido Bründler,
VIP product: Porextherm Dämmstoffe GmbH, ZZWancor / CH
Location: Historic court house in Schaffhausen / Switzerland
Date of realization: August 2002
Funding: ---

Description of the construction: The task was to transform an unheated room in an old court house, built in the 17th century, into a heated and therefore usable space.
Two problems had to be solved:
1. This part of the building had a cellar underneath
2. Space and height were limited due to the fact that it was not possible to install new doors.
The old historic doors as well as the doorframes were too low to install thick floor insulation. To achieve acceptable floor insulation values against the cold coming from the cellar without adding too much height, the only solution was to use Vacucomp® (ZZWancor's trademark) vacuum insulation panels. This insulation problem was solved by using a three layer system of 5 mm Dow “Ethafoam SD”, 10 mm VIP and another 5 mm Dow “Ethafoam SD” without ruining the historic character of the building.

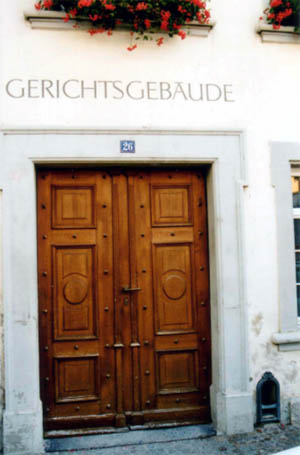

Figure 1: Entrance area of the historic court house in Schaffhausen / Switzerland. The doors inside the building originate from the 17th century as well and had to be retained.

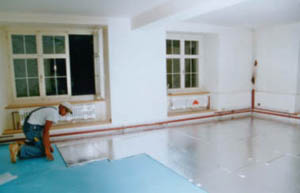

Figure 2: Mounting the vacuum panels according to an assembly plan. VIPs with irregular, slanted sides had to be specially supplied for the edges of the room. All the VIPs were numbered according to the plan.
Figure 3: Typical floor construction with Vacupor® vacuum insulation panels.
